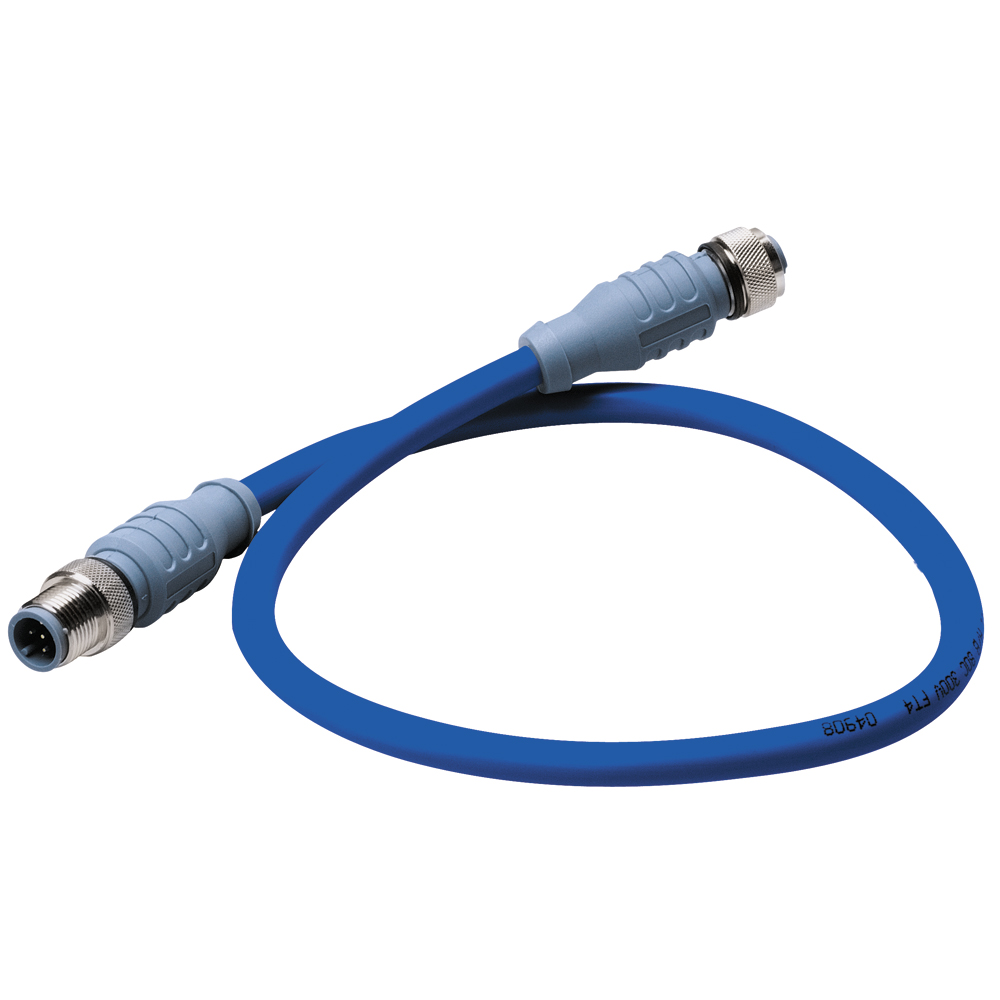

Maretron Mid Double-Ended Cordset - 0.5 Meter - Blue
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse 2
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
2 available
$54.05
Maretron Mid Double-Ended Cordset - 0.5 M Blue
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL - Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
Product Specifications
| Dimensions | 6" L × 5" W × 1" H |
|---|---|
| Shipping Weight | 0.2 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8544.42.00.00 |
