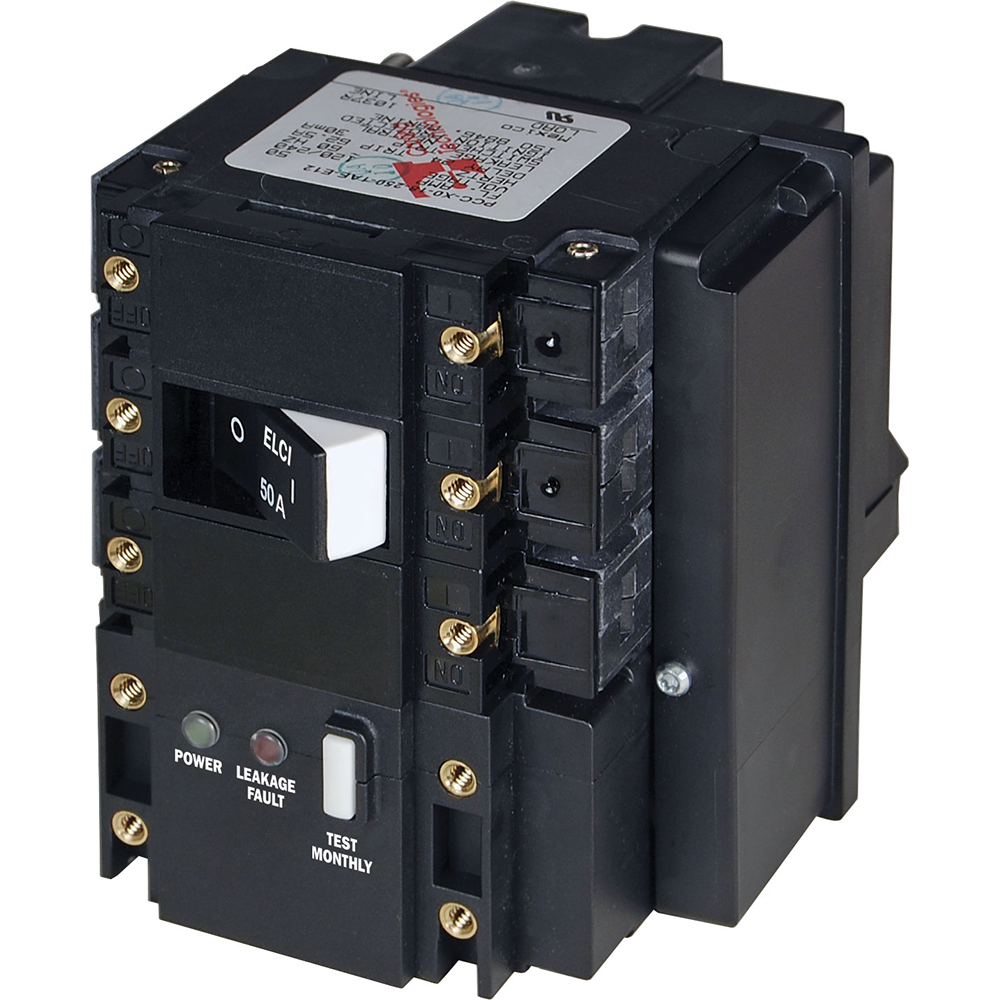

C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 3
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole/240VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 3" L × 2" W × 2" H |
|---|---|
| Shipping Weight | 1.5 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8536.20.00.40 |
Documentation
| Installation Guide | Download PDF |
|---|
