Raymarine Rotary Drive Type 2 - 12V
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$4,346.31

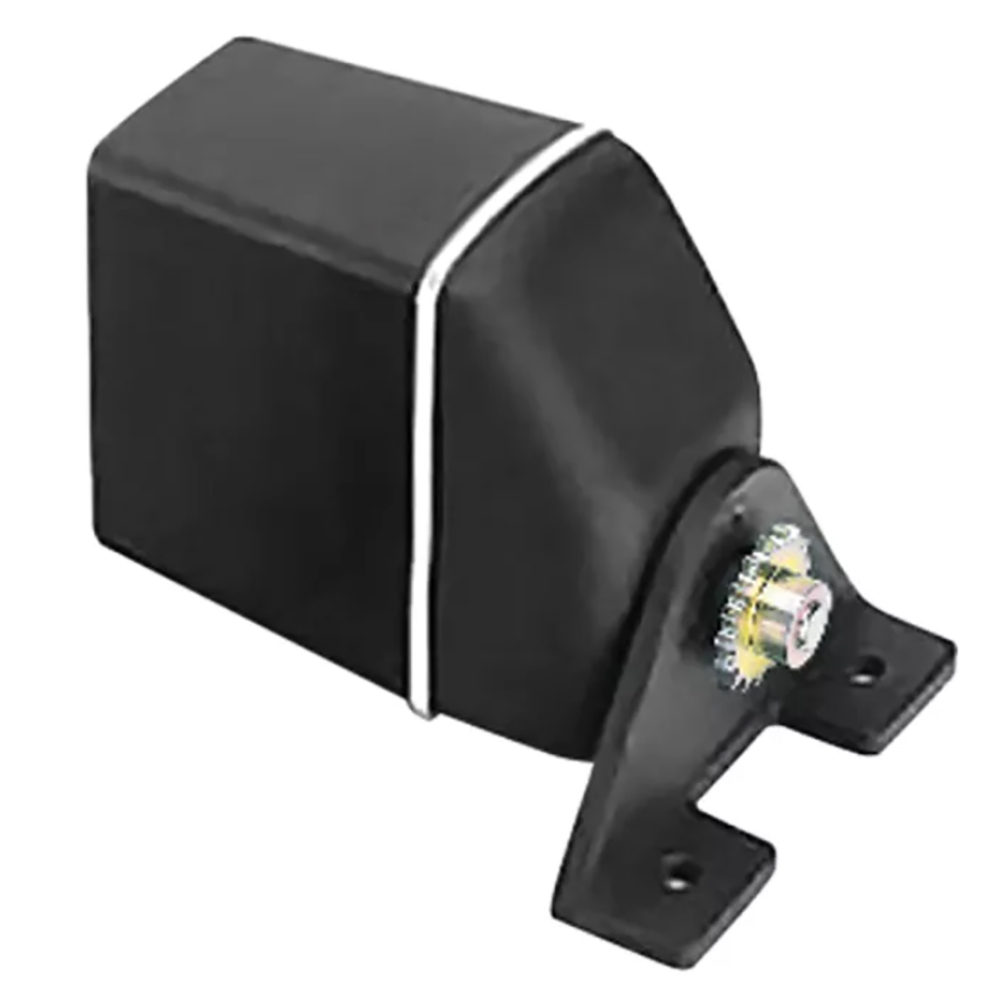

Rotary Drive Type 2 - 12V
The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.
Optional drive sprockets and modification to the steering chain may be required.
Features:
- Rotary Drive
- Type 2
- 12V
Specifications:
- Maximum Boat Displacement: 20,000 kg
- Peak Output Torque: 34 nm
- Maximum Shaft Speed: 33 rpm
- Recommended Hard-Over Time (no load): 10 seconds
- Power Consumption: 60-84w
- Corepack Used: ACU-400
Product Specifications
| Dimensions | 14" L × 11" W × 7" H |
|---|---|
| Shipping Weight | 13.5 lb |
