Lopolight 3NM Double Stacked Ice-Class Port Light
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$5,033.99

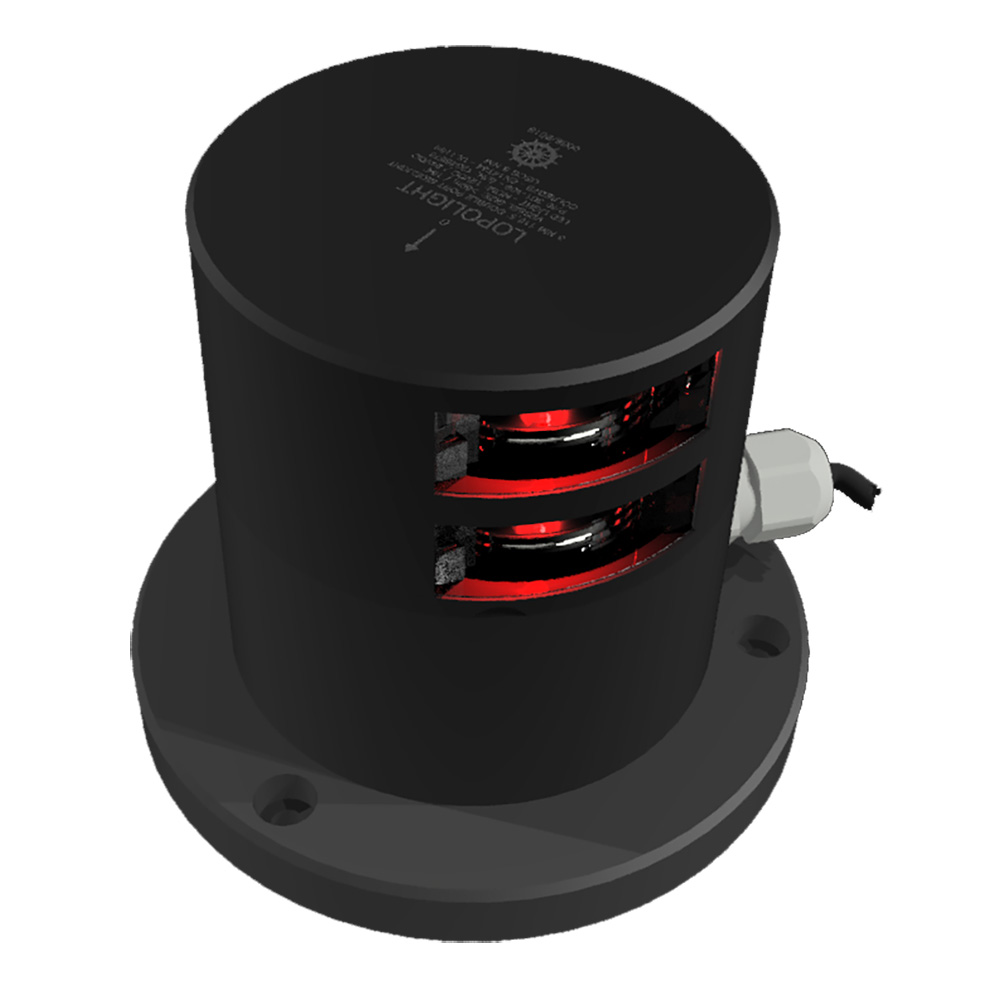

3NM Double Stacked Ice-Class Port Light
This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438014114
- Light Color: Red
- Intensity: >15cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 3NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 153
- Current Consumption (mA @ 24VDC): 92
- Dimensions Metric: Ø92,5mm x 125,5mm
- Dimensions Imperial: Ø3.6" x 4.9"
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 2,2
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.4 Kg
- Weight (oz): 49.38 Oz
Product Specifications
| Country of Origin | DENMARK |
|---|---|
| Harmonized Code | 8541.40.20.00 |
Documentation
| Owner's Manual | Download PDF |
|---|---|
| Installation Guide | Download PDF |
