Samlex 12A Non-Isolated Step-Down 24VDC-12VDC Converter
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

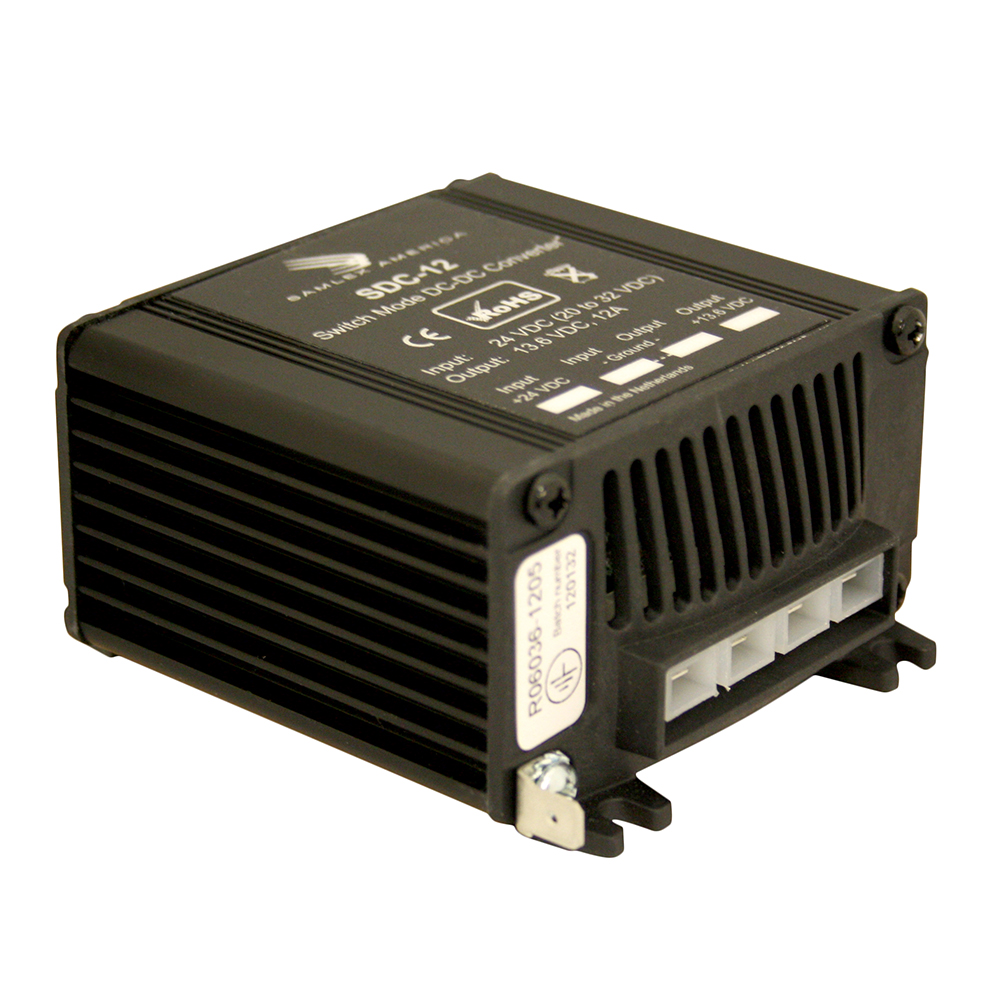

12A Non-Isolated Step-Down 24VDC-12VDC Converter
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-12 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit, reverse polarity and over-voltage protection.
Features:
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Cycle by cycle current limiting circuit
- Overvoltage protection
- Short circuit protection
Specifications:
- Input: 20-32 VDC
- Output: 13.8 VDC
- Amps: 12 Amps
- Weight: 1 (lbs)
- Weight: 0.45 (kg)
- Dimensions: 4 x 3.5 x 2 (in)
- Dimensions: 10.2 x 8.9 x 5.1 (cm)
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
| Dimensions | 4" L × 4" W × 2" H |
|---|---|
| Shipping Weight | 0.7 lb |
| Country of Origin | TAIWAN |
| Harmonized Code | 8504.40.95.80 |
Documentation
| Owner's Manual | Download PDF |
|---|---|
| Brochure | Download PDF |
