Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$202.93
You save:
$35.81

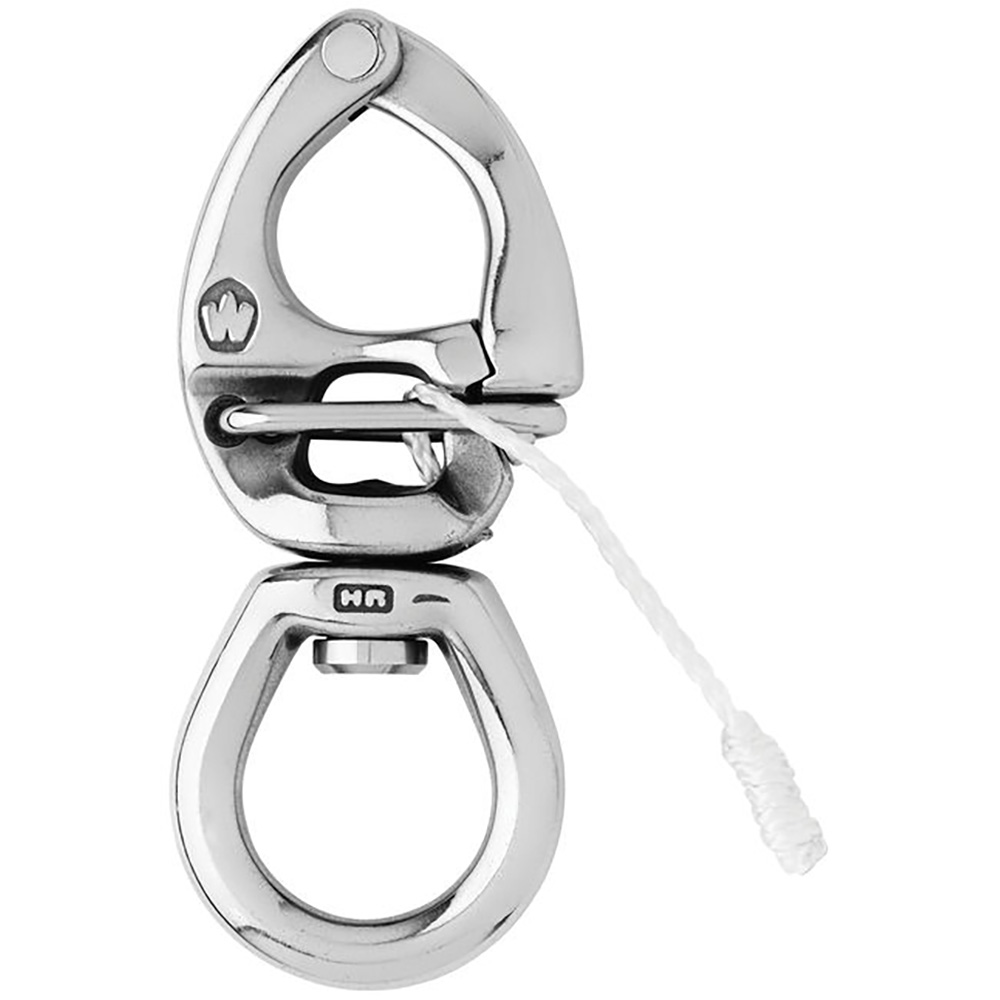

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 1940 / (kg) 880
- Breaking load: (lb) 2860 / (kg) 1300
- Weight: (lb) 0.119 / (g) 54

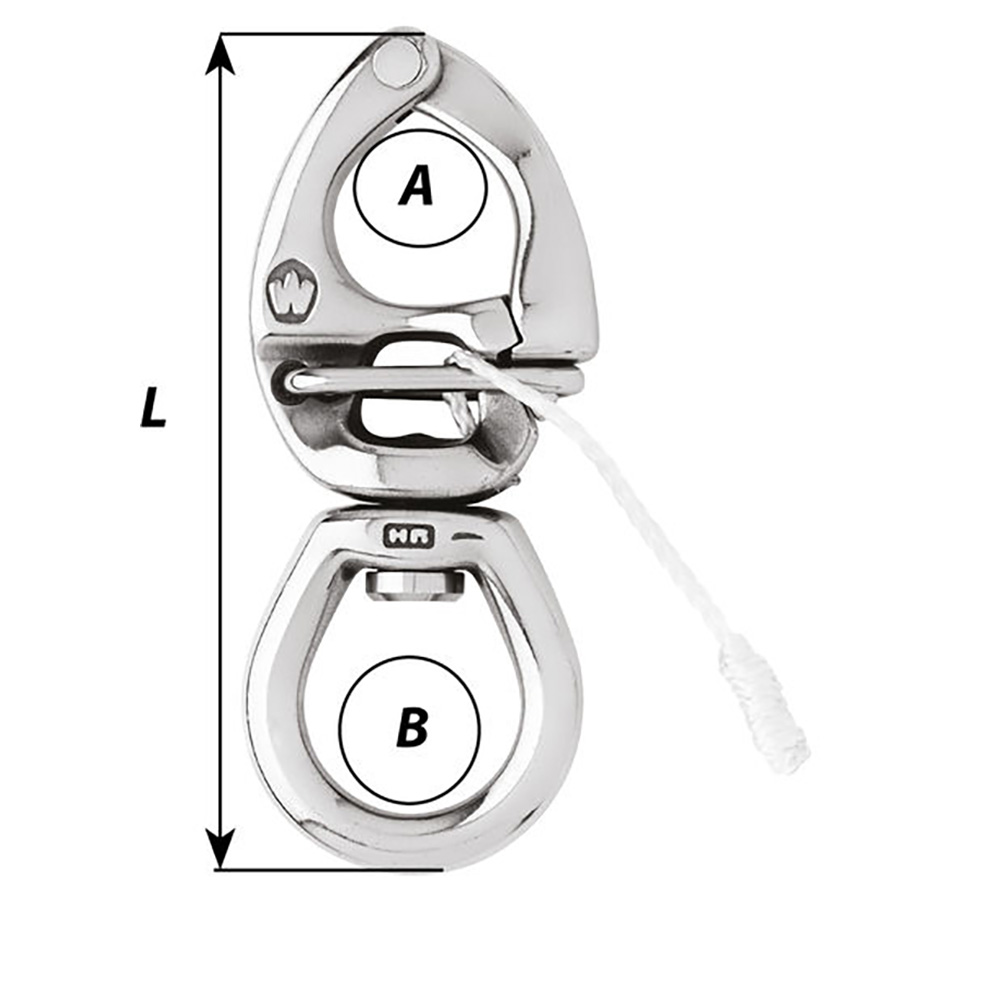

Dimensions:
- A: (inch) 35/64" / (mm) 14
- B: (inch) 3/4" / (mm) 19
- Length: (inch) 3 5/32" / (mm) 80
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Product Specifications
| Dimensions | 6" L × 2" W × 1" H |
|---|---|
| Shipping Weight | 0.15 lb |
